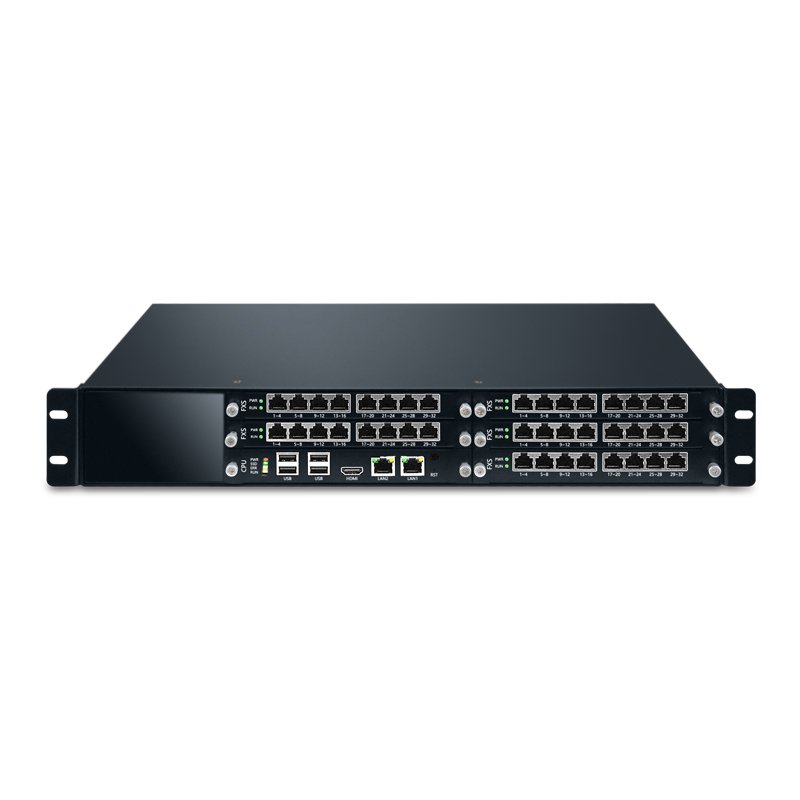

IP PBX 6000T

VoIP PBX Phone system for big enterprise

  • 32-256 FXO port
  • 32-256 FXS port
  • 4 E1 port
  • UP to 1000 SIP users 500 Concurrent calls
  • Reliability:7X24Hrs>99.999% , MTBF>80000Hrs
  • Processor: High-performance ARMS Dual-core CPU

Additional information

Color

Black

Dimension

44(L)X34.8(W)X13.3(H)

Weight

20KG

Power

100V-240V AC,50/60Hz

Operation humidity range

5%~90% non-condensing

Operation temperature range

0~40℃

Storage temperature range

-20~70℃

Product Details:

PBX Business Phone Systems

IP PBX 6000 is Designed for big enterprises with less than 1000 employees. This model supports up to 1000 subscribers and 500 concurrent calls. IPPBX 6000A has 8 slots and each slot can be plugged in with one FXS module or FXO Module, each module includes 32 FXS or 32 FXO interfaces. Therefore, it is also integrated with the 4 E1 Port, which allows you to connect with your old telephone system.

Technical Specifications:
Interface:1 Wan, 2 Lan, RJ45 (10/100/1000Mbps)
1USB 2.0,1 console port,115200bps
FXS Port (Analog Extention): 32-256 ports (optional)
FXO Port (CO Line): 32-256 ports
SIP Users: 1000
Concurrent call: 500
Reliability: 7X24Hrs.>99.999%, MTBF>80000Hrs
Processor: High-performance ARMS Dual-core CPU
Dimension : 440X348X133mm
Weight:20KG
Power: 100V-240V AC,50/60Hz
Storage temperature range: -20~70℃
Operation temperature range: 0~40℃
Operation humidity range:5%~90% non-condensing
Software & Platform:  Linux system
The Main function:

IP Switch Features:

  •  Automated Attendant (IVR)
  • Attended Transfer
  • Alarm Clock Setting
  • Blind Transfer
  • Blacklist/Whitelist
  • Billing App
  • Call Detail Records (CDR)
  • Call Forwarding
  • Call Pickup
  • Call Recording
  • Call Routing
  • Call Waiting
  • Caller ID
  • Conference
  • Custom Prompt
  • Check Own Number
  • Calling Line ID Block
  • Card to Dial
  • Call Busy Back
  • DISA
  • DNIS/CNIS

IP  PBX Syetem Features:

  • Dial by Name
  • Distinctive Ringtone
  • Do Not Disturb (DND)
  • Emergency Number
  • Event Center
  • Extension Ringing Test
  • Follow Me
  • Hotline
  • Import/Export Extensions
  • Mobility Extension
  • Music on Hold
  • Queue
  • Phone Login/logout
  • PIN List
  • Password Dialing
  • Real-time Status Monitor
  • Ring Group
  • Speed Dial
  • Set Secretary
  • SLA
  • Time Condition

 PBX Function:

  • User Privileges
  • User Portal
  • Video Calls
  • Voicemail
  • Voicemail to Email
  • Voicemail Forwarding
  • AutoCLIP
  • App Center
  • Auto Provision IP Phones
  • Call Monitor
  • Call Parking
  • Email to SMS/SMS to Email
  • Fax to Email
  • Hot Standby
  • Paging/Intercom
  • Multi-language System
  • Multi-language Prompt
  • One-Touch Recording
  • SIP Forking
  • Soft Console
  • E1/T1/PRI/Q signal Ports
