VoIP for your Business

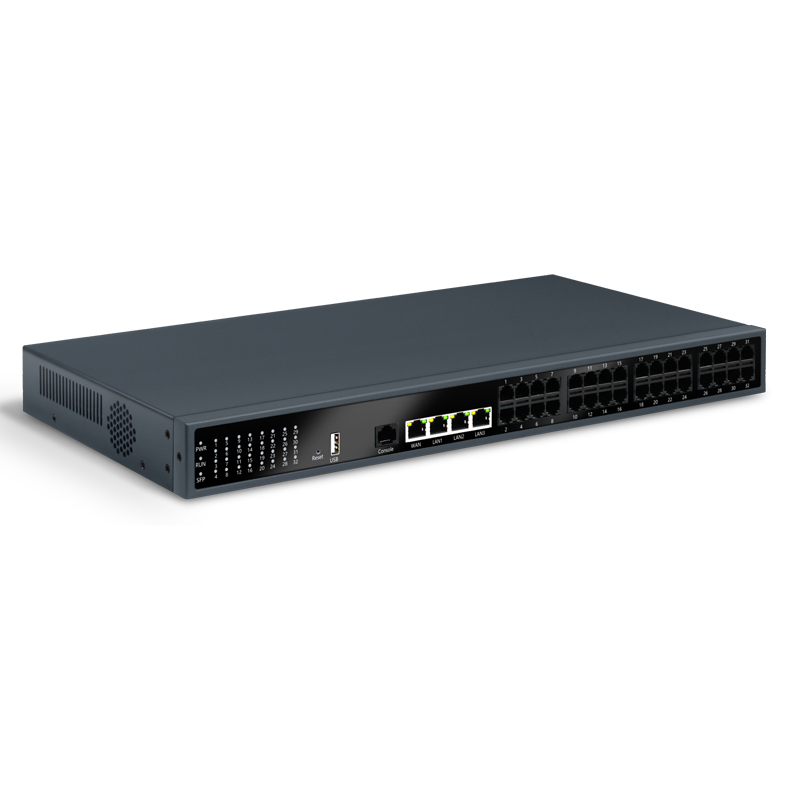

IP PBX800 is a next-generation IP voice communication system designed for Small and Medium-sized Enterprises, significantly
reducing traditional calling costs and building a flexible, intelligent business communication platform. It is suitable for scenarios
with 10-1000 users, such as enterprise headquarters, branches, chain stores, and creative parks, providing a communication
experience comparable to large enterprises while saving costs.
Compatibility: Seamlessly connect to FXO/FXS traditional lines, SIP terminals, analog phones, and fax machines, supporting smooth
transition between new and old systems and protecting enterprises’ existing investments.
User scalability: Supports linear scalability from 10 to 1600 users, adapting to enterprises’ needs at different development stages.
Auto-provisioning: Automatically discover IAD600 series gateways and IP phones in the network, supporting batch configuration,
Technical Specifications:
Interface:1 Wan, 3 Lan , RJ45 (10/100/1000Mbs)

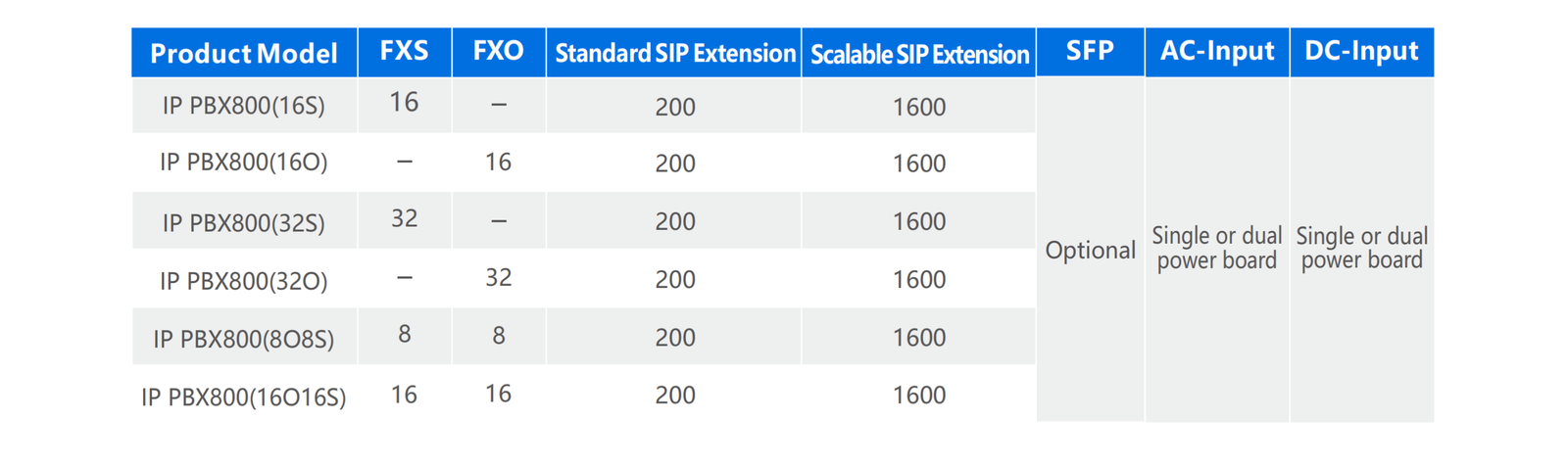

FXS Port (Analog extension): 8 port /32 port
FXO Port (CO Line): 8port /32port
SIP Users: 60/100/200/300/500
Concurrent call: Mini 200
Reliability: 7X24Hrs.>99.999%, MTBF>80000Hrs
Processor: ARM Dual CPU
Case:1U
Dimension : 438X236X45mm
Weight:2.6KG
Power: 100V-240V AC,50/60Hz
Storage temperature range: -20~70℃
Operation temperature range: 0~40℃
Operation humidity range:5%~90% non-condensing
Software & Platform: Linux system
