VoIP Telephony SIP-790

Category IP PHONES Tags RJ45, RJ9

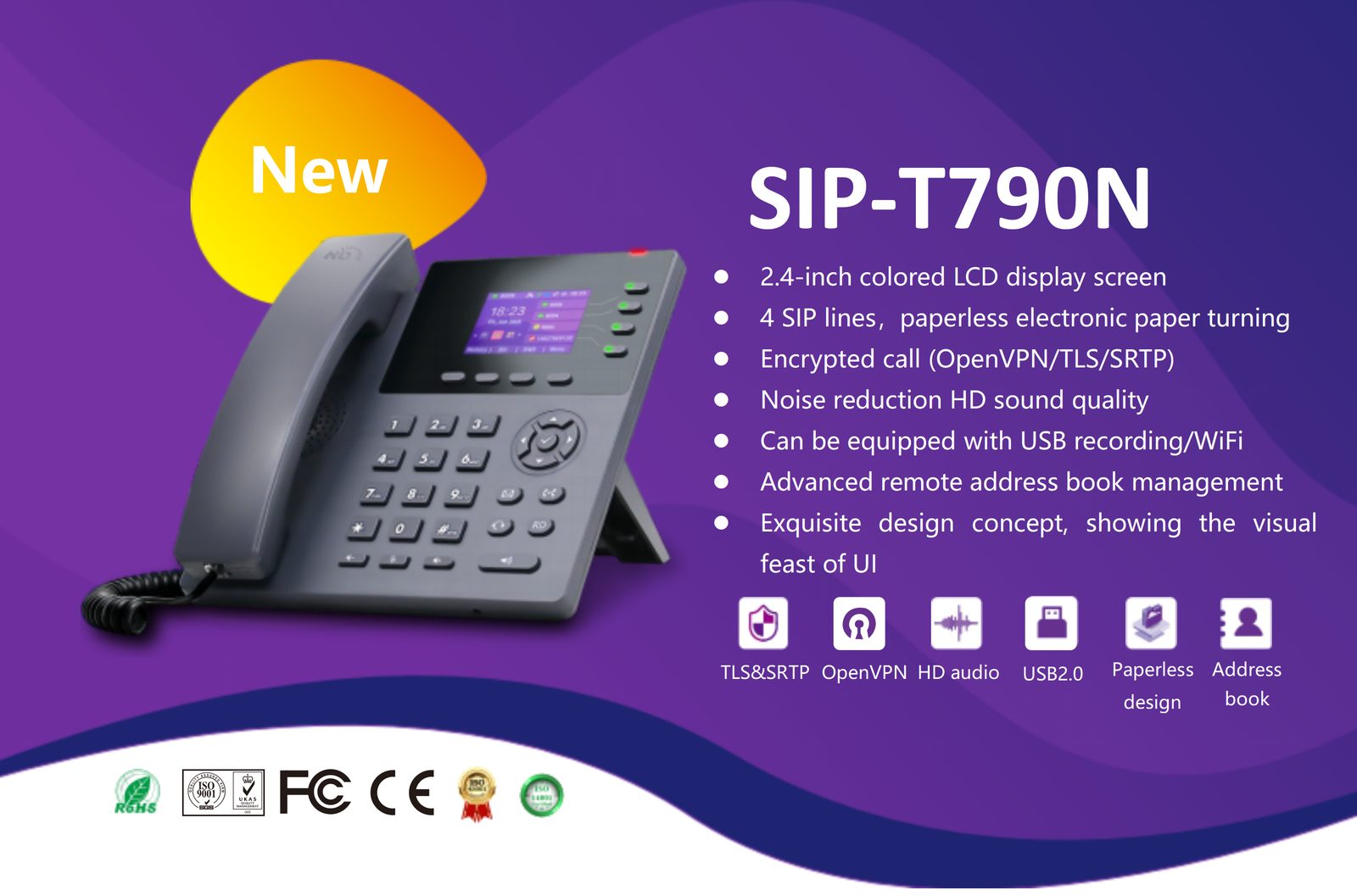

VoIP Telephony SIP-T790 is an entry-level color screen IP Phone. With all the necessary VoIP features and other extended features, it provides a high-quality and convenient experience for users at a moderate price.

Additional information

Color	Black
DC Power Input	5V/0.6A
Working Humidity	0~45℃
Working Temperature	10~95%

Product Details:

Generic

4 SIP Lines
HD Voice
PoE Enabled
2.4-inch color screen
Handset / Hands-free / Headset mode
Desktop Stand / Wall-mounted (need additional wall hanging parts)
Optional External Power Supply

Network

Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
IP Mode: IPv4
IP Configuration: Static IP / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Deployment & Management

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Phonebook Import/Export
Firmware Upgrade
Syslog

Physical Specifications

Main LCD x1: 2.4-inch (320×240) Color Screen
Keypad: 34 keys, including
4 Soft-keys
6 Function keys (Transfer/Mute/Speaker
/MSG/Headset/Redial)
4 Line keys (With LED Indicator Light)
4 Navigation keys
1 OK key
12 Standard Phone Digits keys
2 Volume Control keys (Up/Down)
1 Hands-free key (With LED Indicator Light)
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Back Rack x1
Status Indicator Light x1 (Red)
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
Safety Keyhole x1
DC Power Input: 5V/0.6A
Power Consumption: Idle 0.9~1.65W,Peak 1.8~2.95W
Working Temperature: 0~45℃
Working Humidity: 10~95%

The Main function：

Call Functions

Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forward (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (With server)
3-way Conference
Hot Line
Hot desking

Phone Functions

Local Phonebook (500 entries)
Remote Phonebook (XML/LDAP, 500 entries)
Call logs (In/Out/Missed, 600 entries)
Black/White List Call Filter
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Support Recording (Through Server)
Action URL / Active URI
UA CSTA

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
