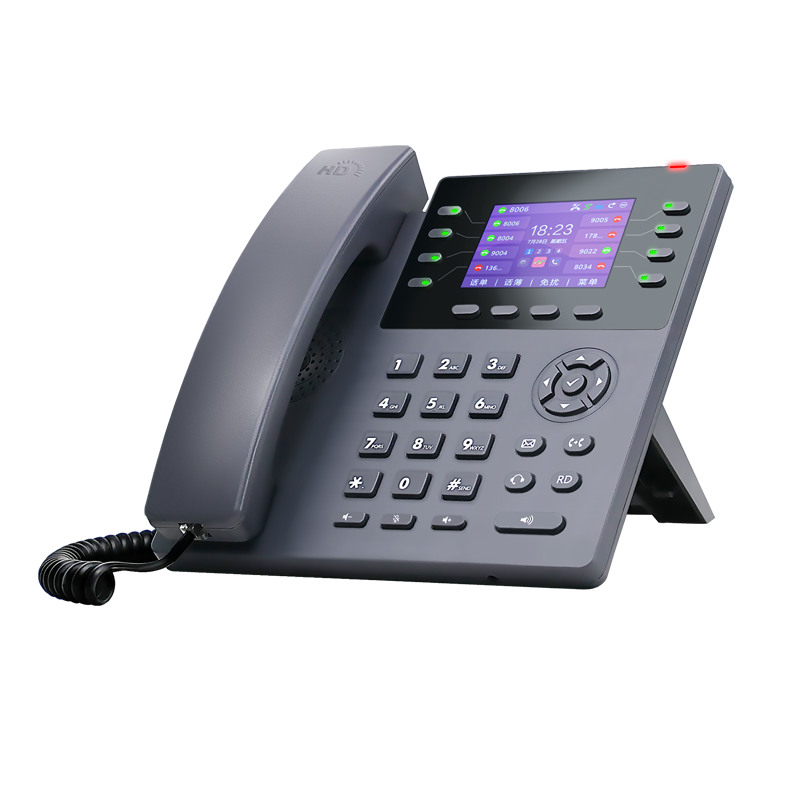

WiFi IP Phone T800

Category Tags , ,

SIP-T800 is an entry-level color screen IP Phone. With all the necessary VoIP features and other extended features, it provides a high-quality and convenient experience for users at a moderate price.

Additional information

Color

Black

Working Humidity

0~45℃

DC Power Input

5V/0.6A

Weight

KG

Product Details:

Generic of  VoIP phone
  • 8 SIP Lines
  • HD Voice
  • PoE Enabled
  • 2.8-inch color screen
  • Handset / Hands-free / Headset mode
  • Desktop Stand / Wall-mounted (need additional wall hanging parts)
  • Optional External Power Supply
  • WiFi

Network

  • Physical: 10/100 Mbps Ethernet, the dual bridged port for PC bypass
  • IP Mode: IPv4
  • IP Configuration: Static IP / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Physical Specifications

  • Main LCD x1: 2.8-inch color Screen
  • Keypad: 38 keys, including
  • 8 Soft-keys
  • 6 Function keys (Transfer/Mute/Speaker/MSG/Headset/Redial)
  • 4 Line keys (With LED Indicator Light)
  • 4 Navigation keys
  • 1 OK key
  • 12 Standard Phone Digits keys
  • 2 Volume Control keys (Up/Down)
  • 1 Hands-free key (With LED Indicator Light)
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5 Ethernet Cable x1
  • Back Rack x1
  • Status Indicator Light x1 (Red)
  • RJ9 Port x2: Handset x1, Headset x1
  • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  • Safety Keyhole x1
  • DC Power Input: 5V/0.6A
  • Power Consumption: Idle 0.9~1.65W,Peak 1.8~2.95W
  • Working Temperature: 0~45℃
  • Working Humidity: 10~95%
Deployment & Management
  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Phonebook Import/Export
  • Firmware Upgrade
  • Syslog
The Main function:

VoIP Phone Call Functions

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forward (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on a server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (With server)
  • 3-way Conference
  • Hot Line
  • Hot desking

IP telephony Functions

  • Local Phonebook (500 entries)
  • Remote Phonebook (XML/LDAP, 500 entries)
  • Call logs (In/Out/Missed, 600 entries)
  • Black/White List Call Filter
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Support Recording (Through Server)
  • Action URL / Active URI
  • UA CSTA

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069
