PA3 SIP Paging Gateway

Category GATEWAY

Highlights

Exquisite, can be embedded in other equipment for internal installation.
10W~30W mono channel power amplifier output, according to the input
voltage to setting the output power.
Audio line in port, 3.5mm standard audio interface, plug and play.
Audio line out port, expandable external active speaker.
Support USB2.0 port and TF card slot for data storage or audio offline broadcasting.
Adaptive 10/100Mbps networkport, integrated PoE
Compatible with major platforms: Asterisk, Broadsoft,3CX, Metaswitch,
Compatiblewithmajorplatforms: Asterisk, Broadsoft,3CX, Metaswitch

Additional information

Product Details:

PA3 is a SIP Public Announcement system device for industry application. The media stream transmission adopts standard IP/RTP/RTSP protocols. It has various functions and interfaces,such as Intercom, broadcast and recording,to adapt different application environments. Users can DIY the paging device easily.

The Main function：

Generic

2 SIP lines
Speed dial
Linkage with IP camera to realize video intercom
Oral announcement of the IP address (in English)
MP3 broadcasting
Support programmable DSS key ports
Support mono active speaker
Support audio line in
Support TF card and USB flash drive
PoE enabled

Device Functions

Auto-answering
Programmable DSS keys
Through button or web page volume adjustment
Network time synchronization
Dynamic multicast function
Support recording(through USB flash drive or server)
Action URL/Active URI

Call Functions

Call out/answer/reject
Call waiting
Intercom, Multicast
Speed dial
Anonymous call(Hide caller ID)
Call parking/pick-up(depending on server)

Audio

Narrowband codec: G.711A/U, G.729A/B,iLBC,G.723 ,G.726-32K
Wideband codec: G.722, Opus
Full-duplex hands-free speakerphone with AEC
DTMF: In-band,Out-of-Band(RFC2833/SIP INFO)

Network

Physical:10/100Mbps Ethernet
IP mode:IPv4/IPv6/IPv4&IPv6
IP configuration: StaticIP/DHCP/PPPoE
VPN:L2TP/OpenVPN
VLAN
LLDP
Qos
Protocols
SIP 2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
PPPoE
L2TP
Open VPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment&Management

Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIP/PNP/TR-069
Webmanagementportal
Web-basedpacketdump
Configurationexport/import
Firmwareupgrade
Syslog

Physical Specifications

Keypad: 3keys,including

2 volume control keys(Up/Down)

1 reset key (softreset)

DC port x1: DC power input

Port: 2 Pin terminal socket

RJ45 port x1 : connect the network

Power over Ethernet (IEEE802.3at) , class 4

Blue LEDx1: (SIP statusand network status)
Line in port x1: connect audio line input

Port: 3.5mm standard audio port

Line outport x1: connect the active speaker

Out: adjustable by volume, max up to1.2Vpp.

Port: terminal lsocket

MIC in port x1: connect the MIC

Electret condenser MIC is recommended

Sensitivity:-38dB, impedance 2.2 k ohm, bias voltage 2.54Vpp

Port: terminal socket

Passive speaker prot x 1: connect the speaker

Out put power: 4Ω,PoE/10W,12V/10W,18V/20W,24V/30W;

Related to power supply voltage.

Wire diameter: 18AWG or higher.

Port: terminal socket

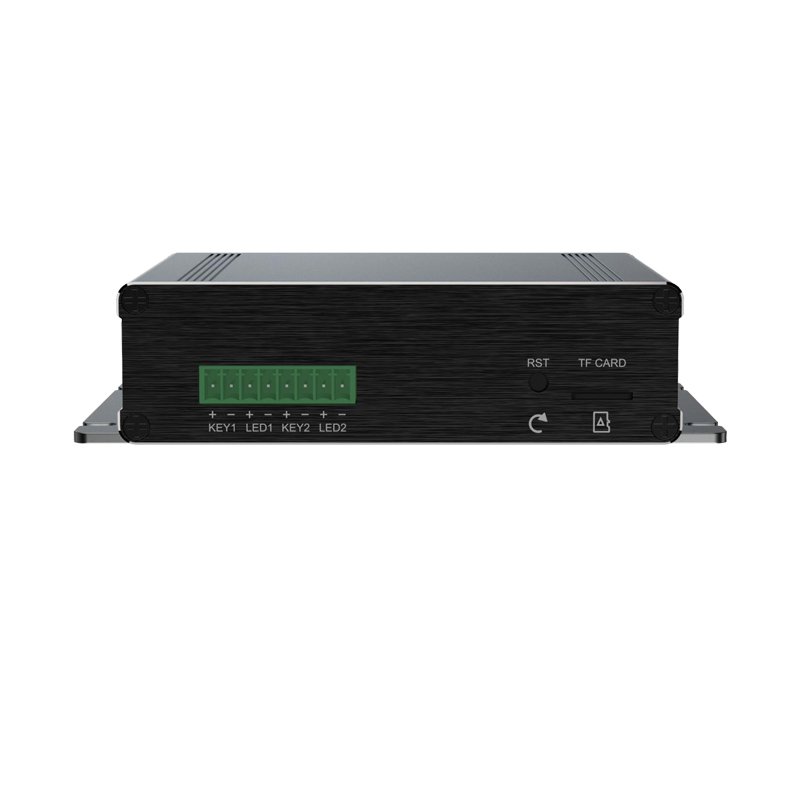

DSS key sport x 2: connect the external buttons(support LED) LED: Output 5.0Vdc/5mA.Port: 8 pin terminal socket
TF card slot x1: connect TF cardUSB2.0 port x1:Connect USB flash drive, broad cast local audio files.
DC power input: DC12V~24V/2A
Working temperature:-20℃~50℃
Storage temperature:-30℃~60℃
Working humidity:10~95%
Installation: Desktopstand/Wall-mounted
Color :black
Device dimensions:125×84.2x31mm
Gift box dimensions:147x114x58mm
Outer CTN dimensions:310x248x322mm(20PCS)
